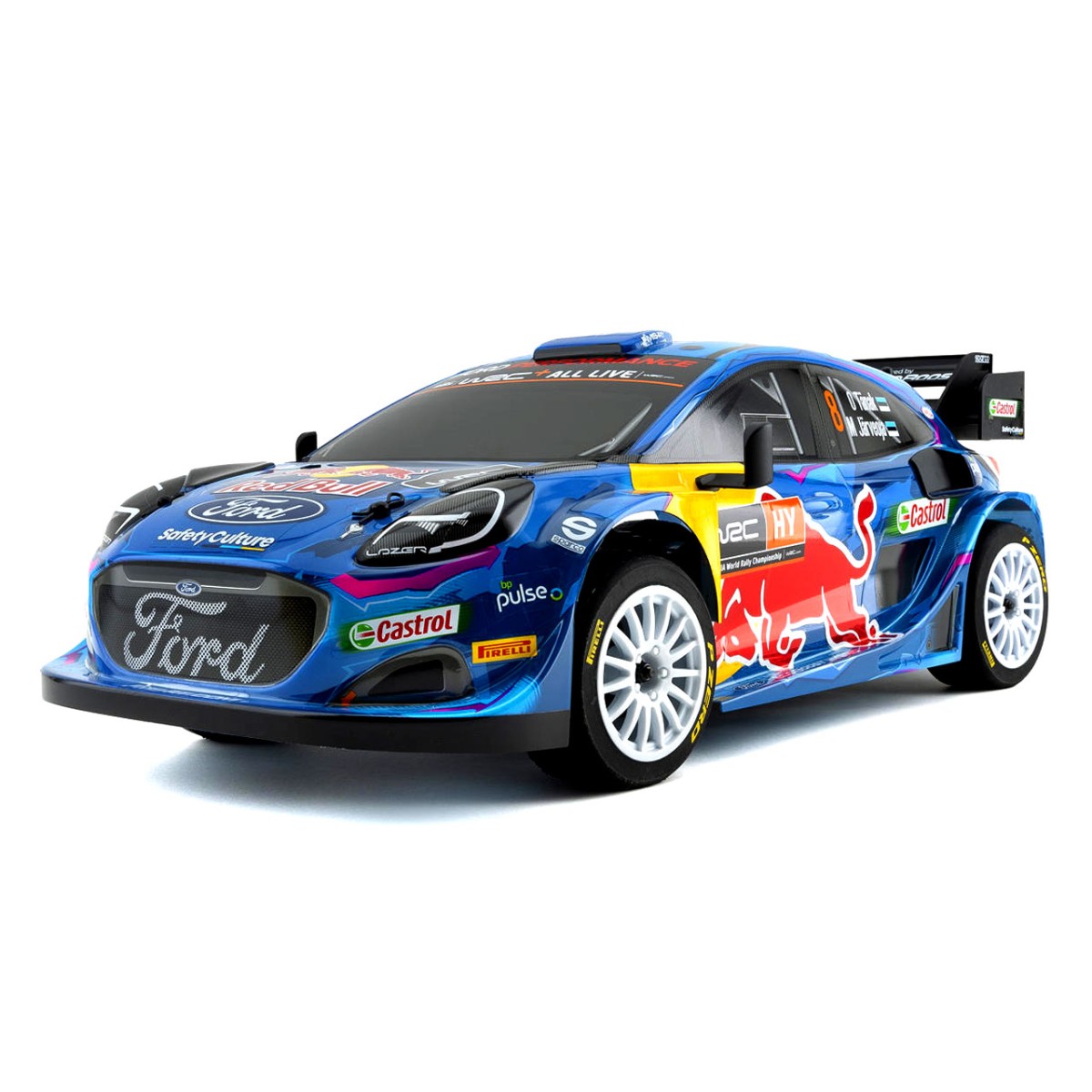

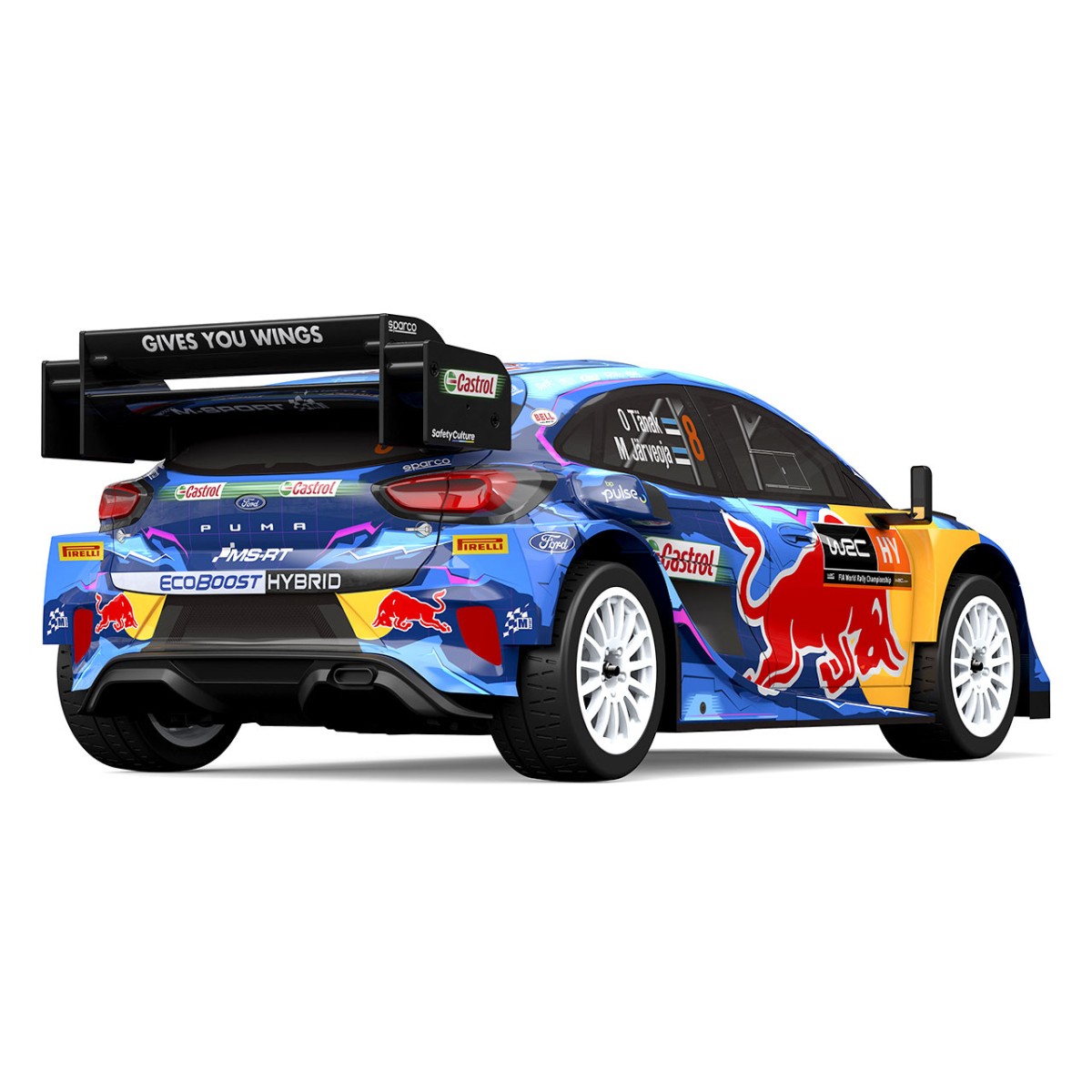

CEN Racing is proud to announce the latest addition to their extensive R/C lineup: the truly iconic 2023 M-Sport Ford Puma Rally1.

The Ford Puma Rally1 was designed according to the new technical regulations of the FIA ​​Rally1 for 2023 and is M-Sport's most powerful rally car. Its Ecoboost engine produces over 500 hp and 550 Nm of torque.

Cen Racing now offers you the opportunity to call this 4WD rally legend your own. Equipped with a 100A brushless system and 2.4 GHz technology, the 1:8 fun car offers everyone the opportunity to drive their perfect line and experience all the thrills and fun that only Cen Racing can offer.

This ready-to-drive RTR set is the perfect RC collectible for WRC fans or an ideal entry-level vehicle for R/C fans of all ages.

Battery and charger are not included, a 2S - 3S Lipo battery is recommended.

Technical data:

ESC:

• 100A WP-MAX10-SCT-100A-3S RTR Sensorless with T-Plug (powered by HobbyWing).
• 2-3S Li-po (lithium polymer) or 6-9 cell Ni-Mh batteries.
• Water and dust resistant for all weather conditions.
• Super Internal Switch-Mode BEC with 6V / 7.4V for use with high voltage servos.
• Built-in capacitor module.
• Automatic calibration of the throttle range.
• Low voltage shutdown for Li-Po and NiMH batteries.
• Overheating protection and protection against accelerator signal loss.
• 5 levels of acceleration/punch.
• 9 levels of maximum braking force.

Engine:

• CEN Racing High Performance 3658 3000KV Brushless Motor (sensorless).

Servo:

• 12Kg metal gear servo (from Savox).
• 4.8V - 0.26 sec/60° 10.0 kg-cm.
• 6.0V - 0.23 sec/60° 12.0 kg-cm.
• With 25T horn gear teeth.

Radio system:

• AMP-30 TX 3-channel transmitter.
• Frequencies: 2.4GHz.
• Digital trim.
• Steering Dual Rate (ST D/R) setting.
• Endpoint setting (EPA).
• Built-in failsafe.
• Power supply: 4 - AA alkaline (not included).

AMP30 RX 3-channel receiver.

• Frequency: 2.4GHz.
• Power supply: DC 4.8 ~ 6.0V.
• -Dimensions: 1.35" (L) x 0.72" (W) x 0.53" (H).

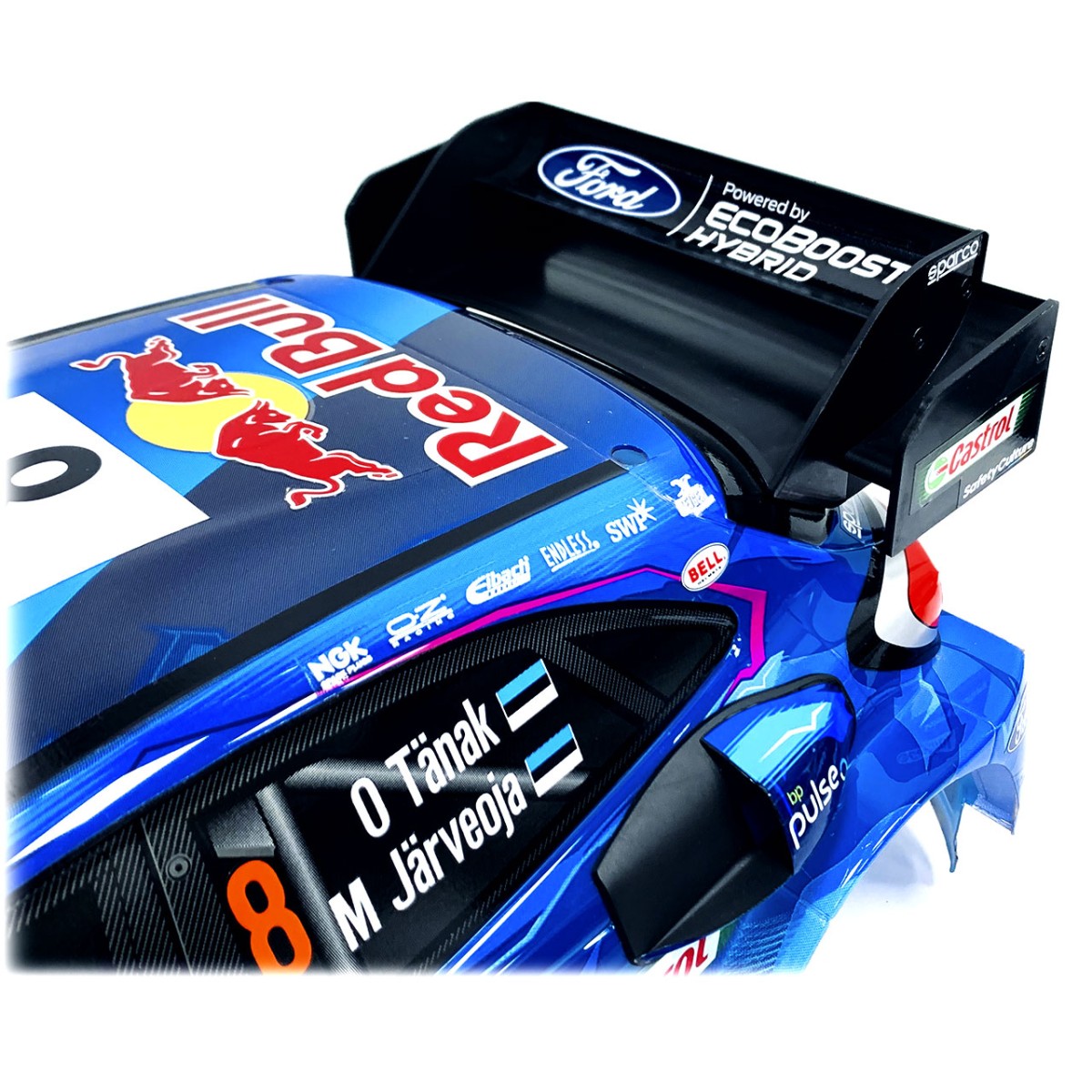

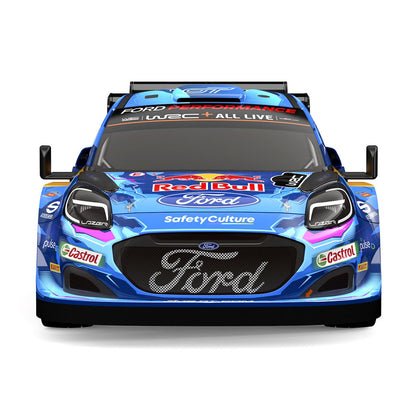

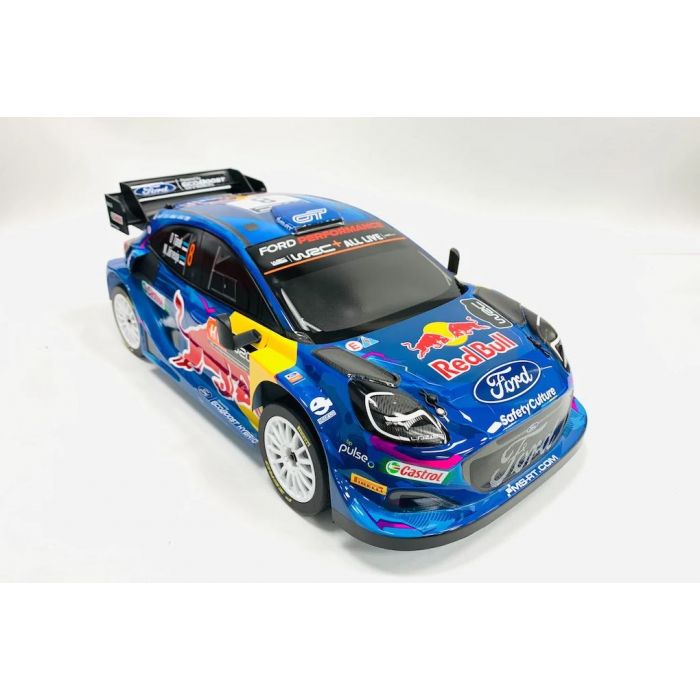

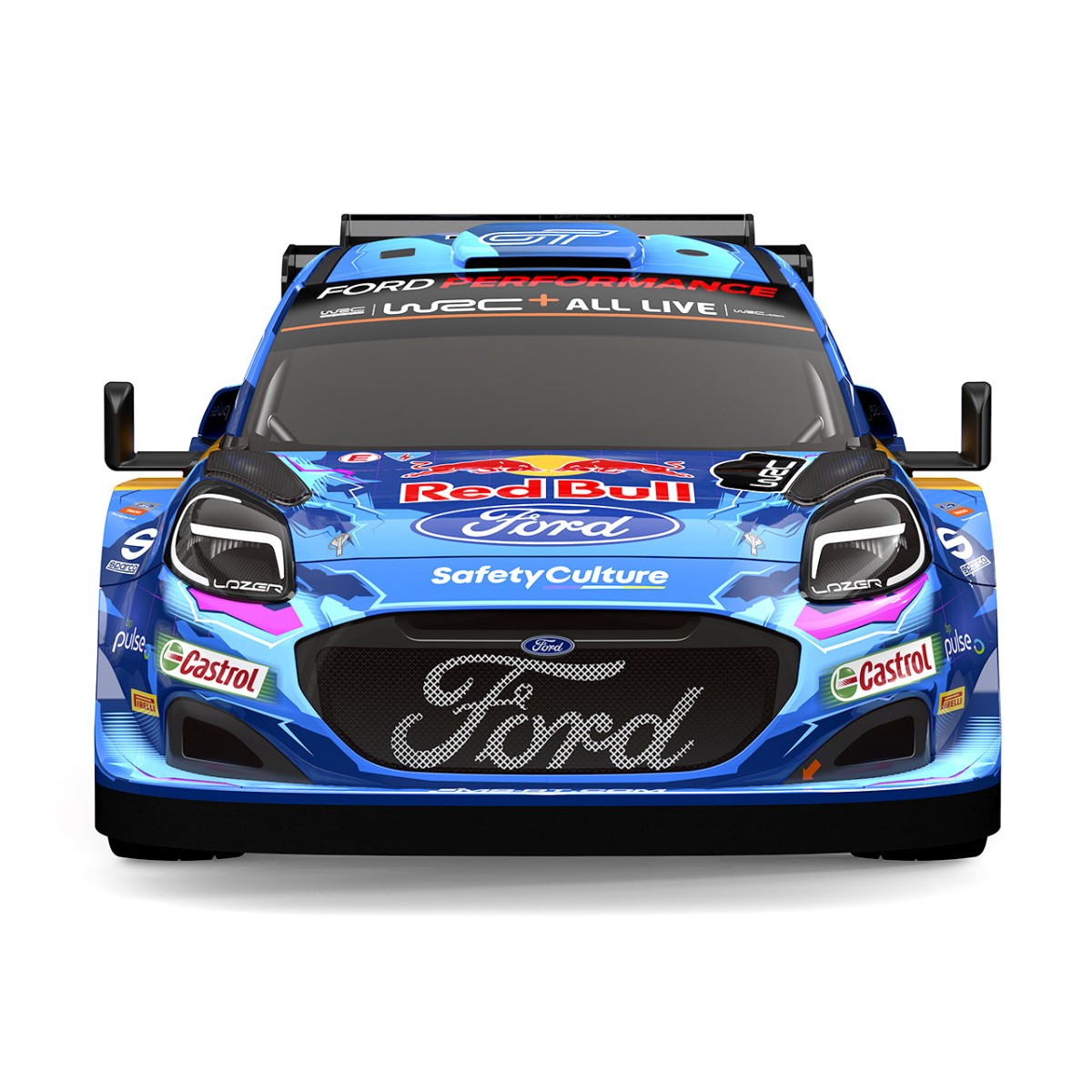

Body:

• Officially licensed 2023 M-Sport Ford Puma Rally 1 Edition
• Detailed injection molded body accessories Body details
• Dimensions: Length 20.08inches (510mm) / Width 9.45 inches (240mm)

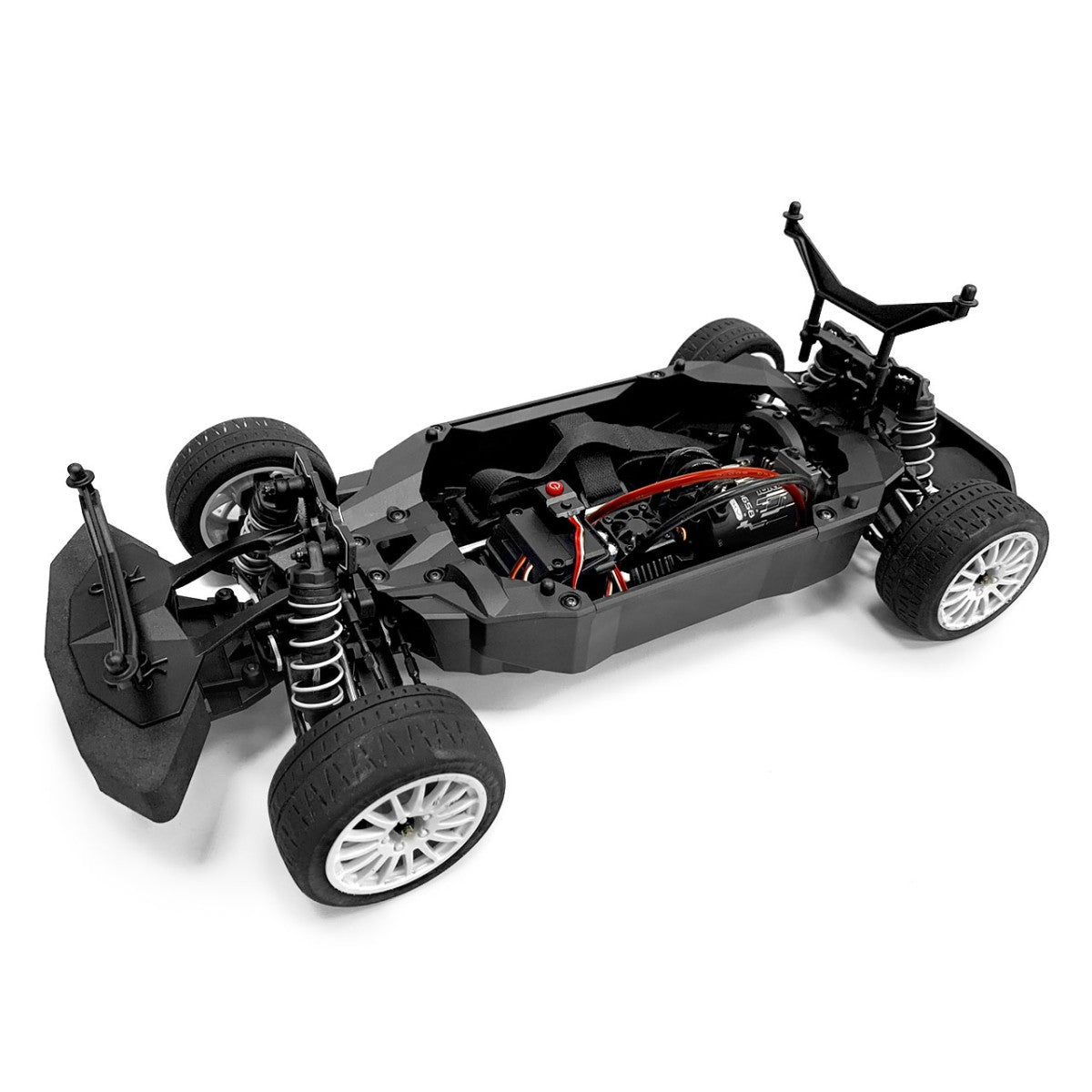

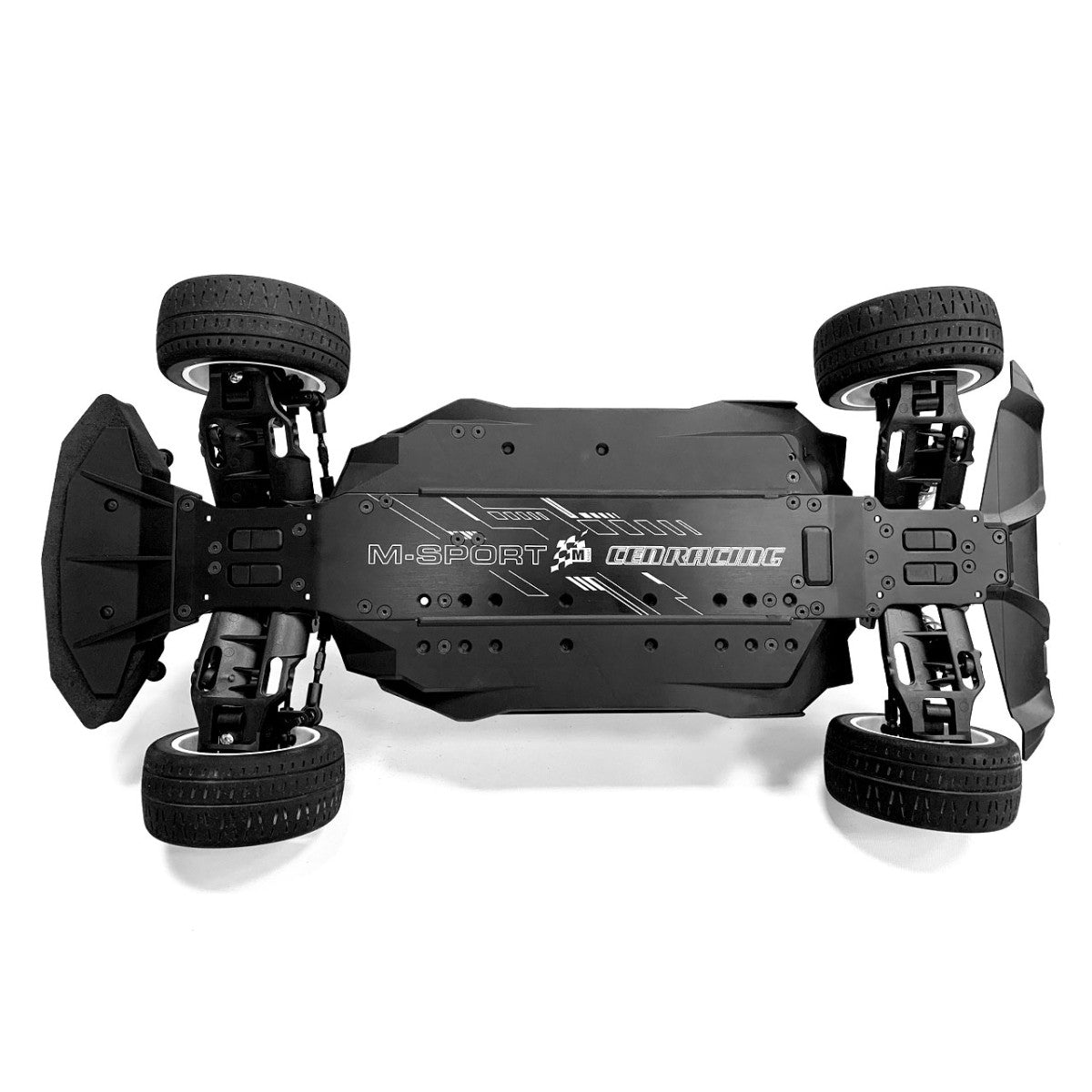

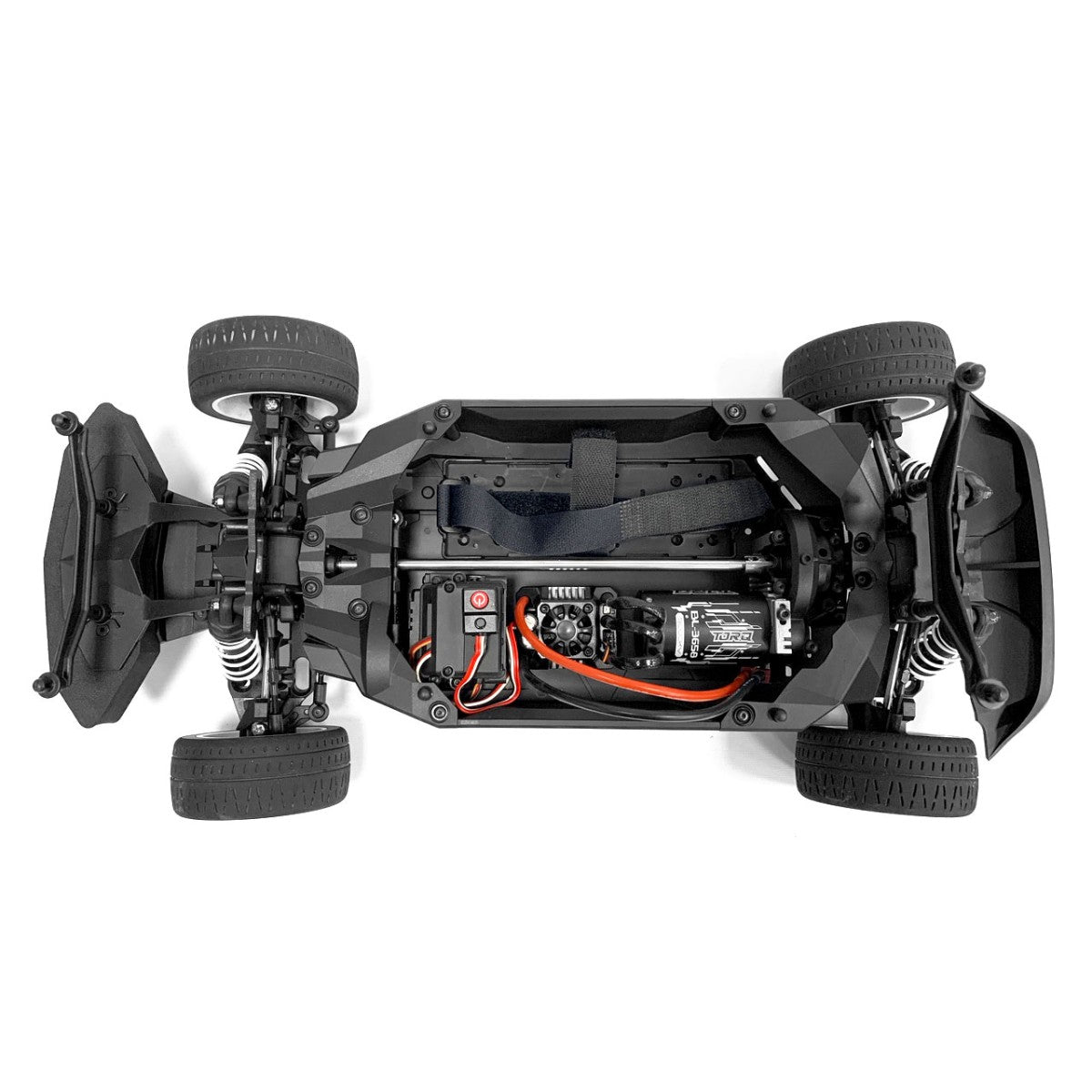

Chassis:

• 3mm aluminum chassis
• Front and rear 3mm aluminum damper towers
• Aluminium arm brace
• Full precision ball bearingsWider body mounts for better grip
• Front underrun protection with durable foam buffer
• Injection-molded rear diffuser
• Easily accessible battery compartment
• Battery compartment size 142mm x 48mm

Suspension:

• Aerodynamic forearm suspension
• Big Bore oil-filled, adjustable coil springs
• 12mm oversized shock body with 3mm hardened and polished steel shaft
• Racing spring
• Adjustable tie rods
• Adjustable wheelbase +/- 6mm

Gear ratio:

• Spur gear / pinion 46/14T 3.29:1
• Ring & pinion 40/17T 2.35:1

Drivetrain:

• Full Time 4-wheel drive
• Center shaft drive for more power transmission to the wheels
• Metal gears
• Adjustable aluminum engine mount
• Oil-filled dual-differential drive system
• Central direct drive
• Highly efficient transmission system
• 6-gear bevel gear differential
• Front / Rear Dog Bone and Outdrives made of hardened steel

Wheel:

• Heavy-duty and lightweight WRC racing wheel 56 x 35.50 mm.

Tires:

• High performance racing rubber compound tires 56 x 80 x 35.50 mm.

Mass weight:

• Chassis length: 460mm
• Chassis width: 230 mm
• Wheelbase: 300mm
• Ground clearance: 25 mm
• Weight: 2.5kg
