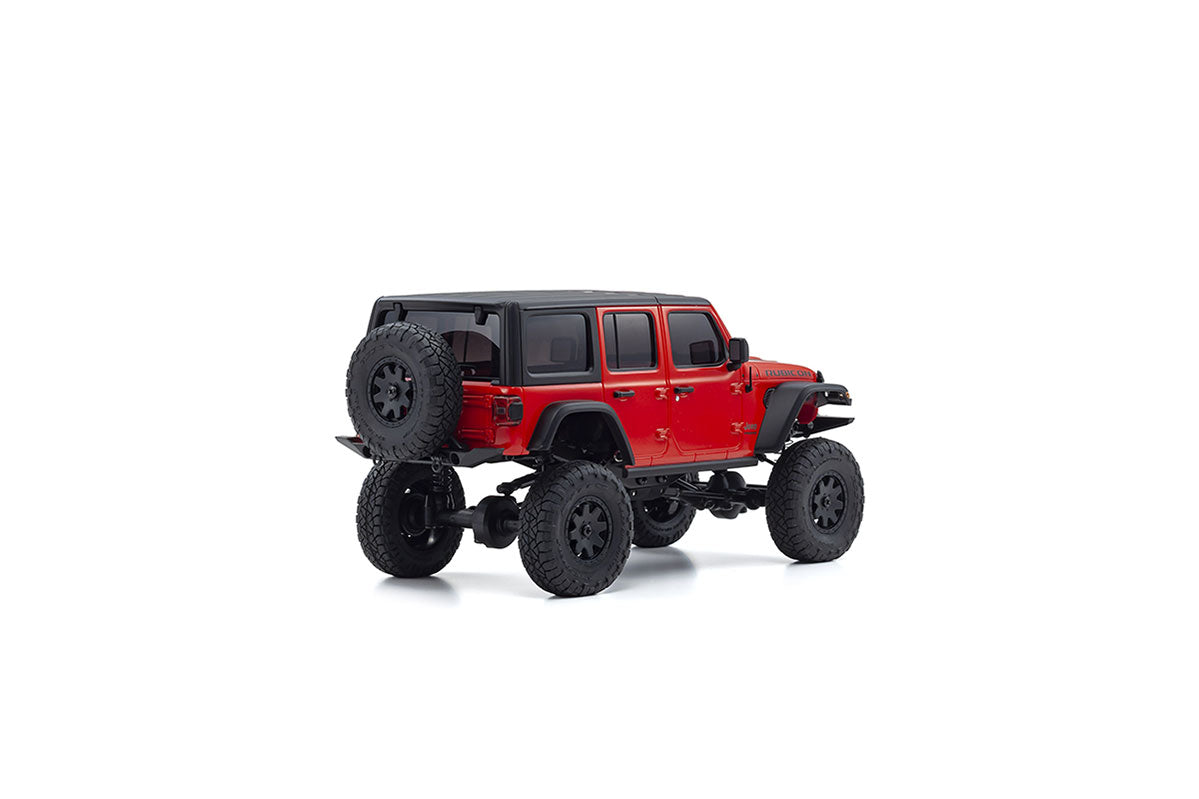

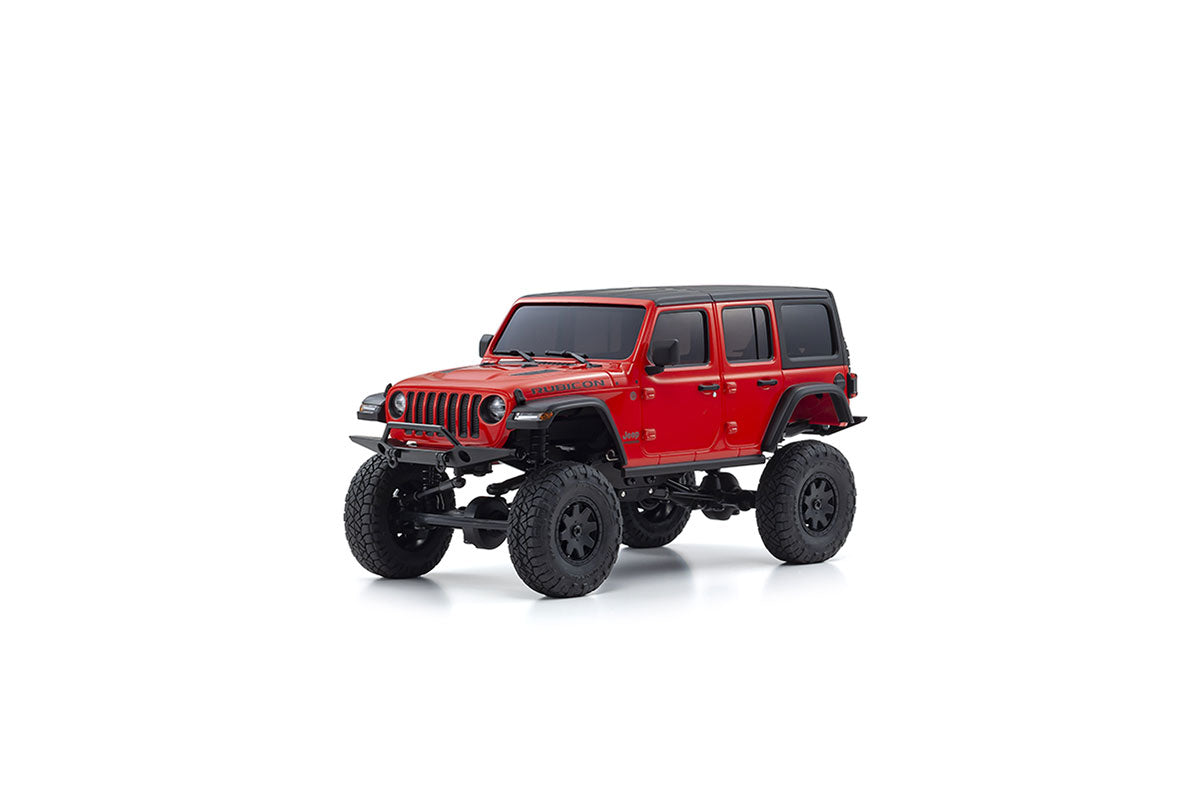

Mini-Z 4X4 MX-01 Jeep Wrangler Rubicon Firecracker Red (KT531P)

The Kyosho MINI-Z 4x4 Jeep® Wrangler Unlimited Rubicon brings authentic rock crawler action to your tabletop, living room, or off-road adventures in a compact format. The injection-molded, fully pre-painted body with numerous scale details sets new standards within the MINI-Z series and looks like a high-quality diecast replica. The thicker material also ensures high durability during demanding crawling use.

As a genuine Rubicon model, this Jeep® proudly displays the “TRAIL RATED®” emblem and impresses with authentic details: the iconic seven-slot grille with mesh backing, clear headlight, indicator and taillight lenses (LED-ready), black fenders, dark grille accents and the distinctive black hardtop – all perfectly replicated on a MINI-Z scale.

Technically, the MINI-Z 4x4 is based on a ladder-frame chassis (MX-01) with multi-link rigid axles , similar to those found in larger 1:10 scale off-road models – only meticulously miniaturized. Metal gears, solid steel links, a fully ball-bearing-mounted drivetrain, and a high-torque, specially designed motor ensure controlled power delivery and excellent climbing capabilities. The 4WD system with adjustable wheelbase (the Jeep uses 120 mm ) and six included pinion gears allows for gear ratios ranging from extremely slow crawling to faster scale driving.

A newly developed one-touch body mounting system allows for quick removal of the body without visible brackets. The redesigned dampers with 360° spring plates prevent the spring plates from coming loose off-road. The sophisticated Ackermann geometry of the front axle delivers the smallest turning circle in MINI Z 4x4 history – ideal for precise maneuvering in tight spaces.

As a ReadySet , everything comes pre-assembled and ready to drive: unpack, insert batteries and drive off.

Highlights

• Highly detailed, injection-molded Jeep® Wrangler Rubicon body
• One-touch body mounting (no visible cotter pins)
• MX-01 ladder frame chassis with multi-link rigid axles
• 4WD drive with metal gears & standard slipper clutch
• Fully ball bearing (18 ball bearings ex works)
• High-torque special motor for crawling performance
• 6 sprockets included (ultra-slow to fast scale gear)
• Adjustable wheelbase (Jeep®: 120 mm )
• Scale tires Nitto Ridge Grappler on special rims
• LED light set optionally retrofittable (MZW429R)
• Syncro KT-531P 2.4 GHz transmitter with dual rate & trim

Technical data

• Length: 197.3 mm
• Width: 87.3 mm
• Height: 89.1 mm
• Chassis: MX-01
• Wheelbase: 120 mm
• Weight: 234 g (without batteries)
• Engine: 130-class
• Translations: 55.44:1 / 46.20:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1
• Tires (front/rear): Ø 42.0 mm × 14.3 mm
• Speed: approx. 2.7 – 5.4 km/h (depending on the sprocket)
• Running time: approx. 60 minutes
• Transmitter: Syncro KT-531P (FHSS 2.4 GHz)
• Battery: 4 × AAA (vehicle)

Scope of delivery

• Complete chassis with built-in electronics
• Factory-painted Jeep® Wrangler Rubicon body

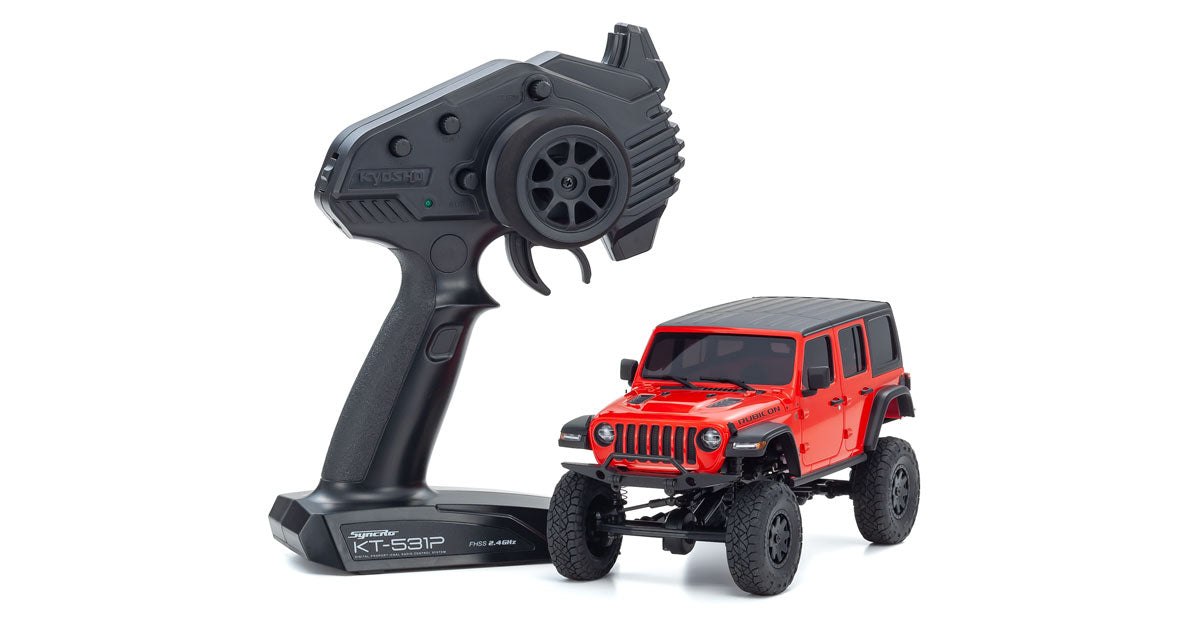

• Syncro KT-531P 2.4 GHz Transmitter
• Sprocket set (10T / 12T / 14T / 16T / 18T / 20T)
• 3 × Sprocket spacers

Required for operation

• 4 x AAA batteries for the transmitter
• 4 x AAA batteries for the vehicle (alkaline or NiMH)
