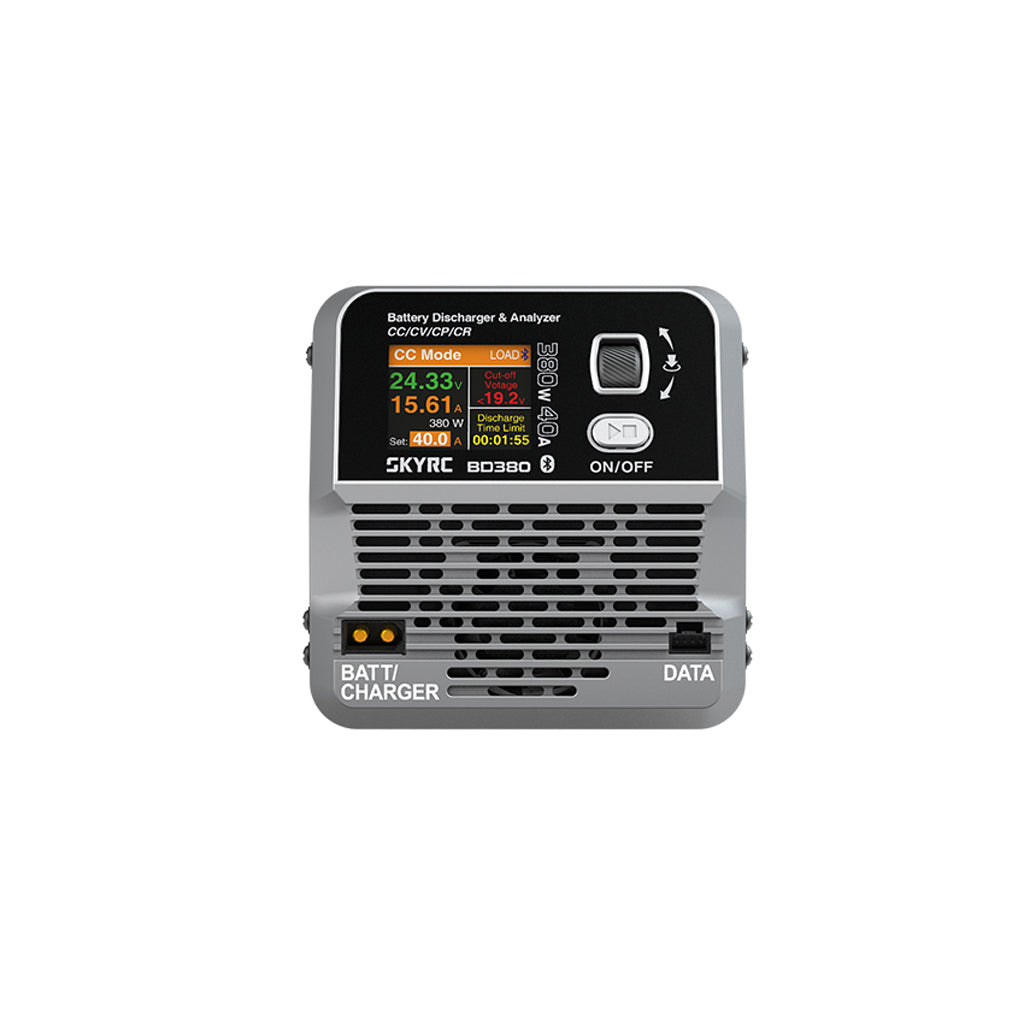

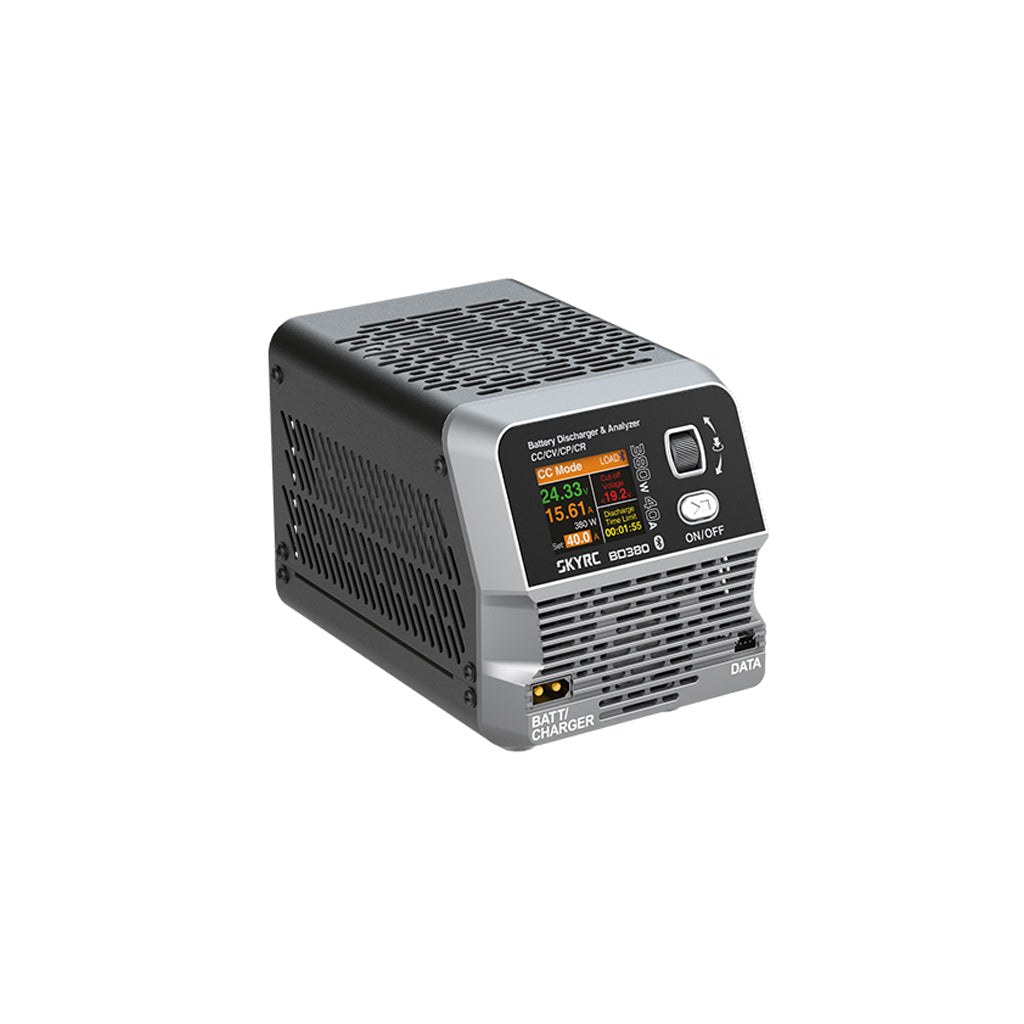

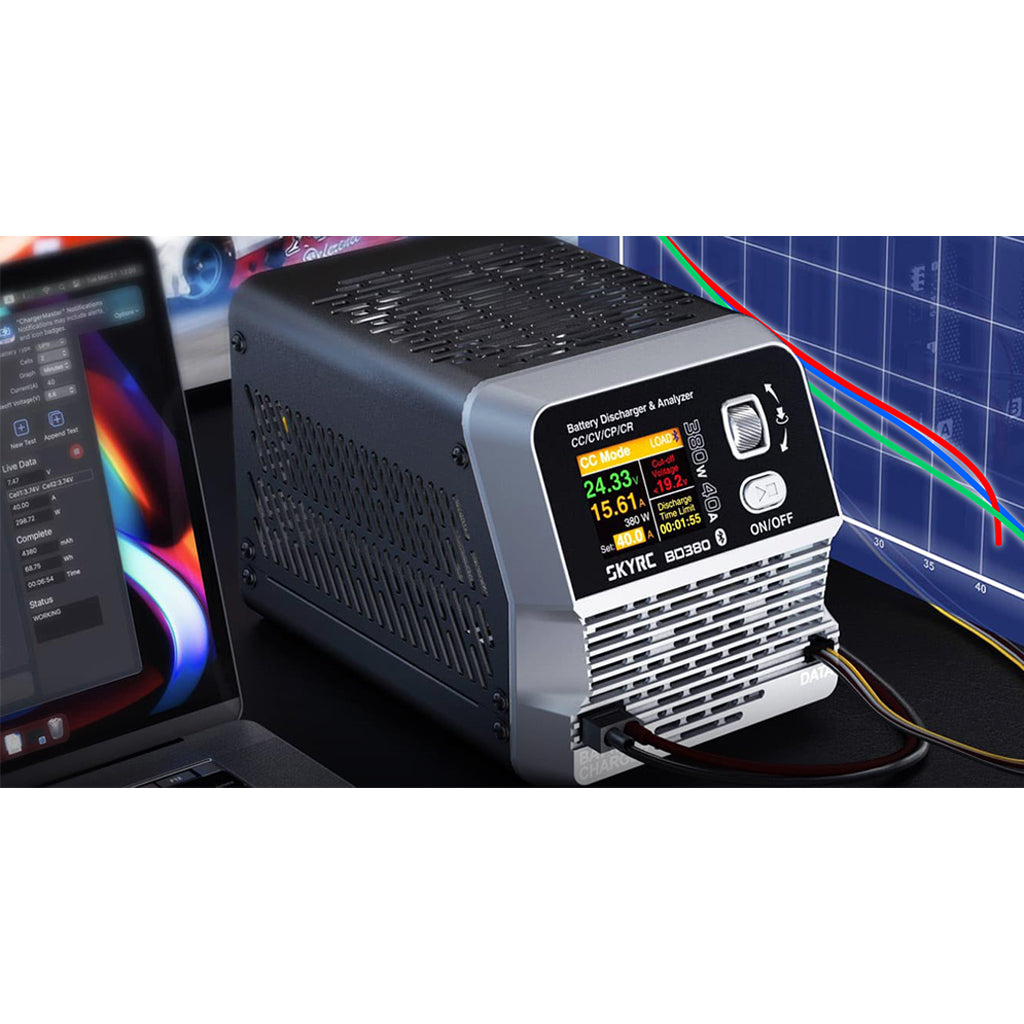

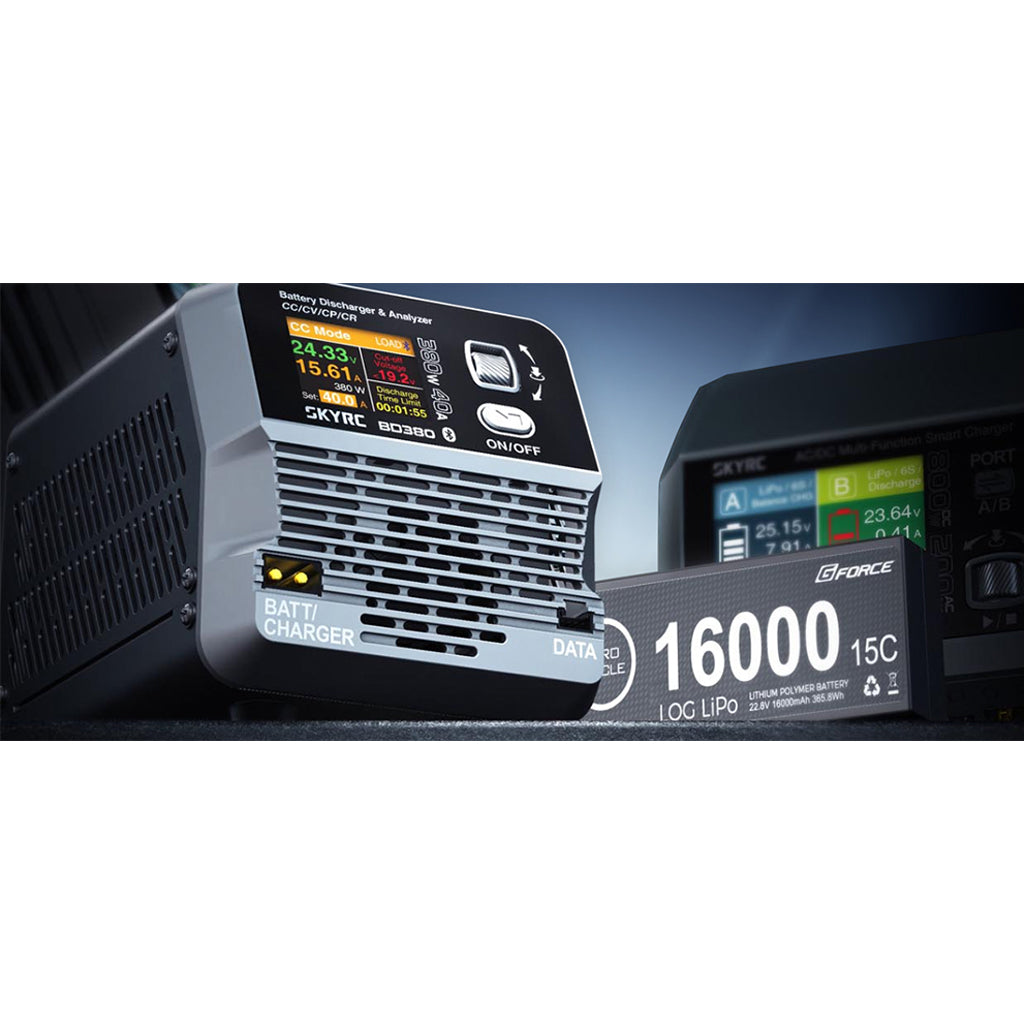

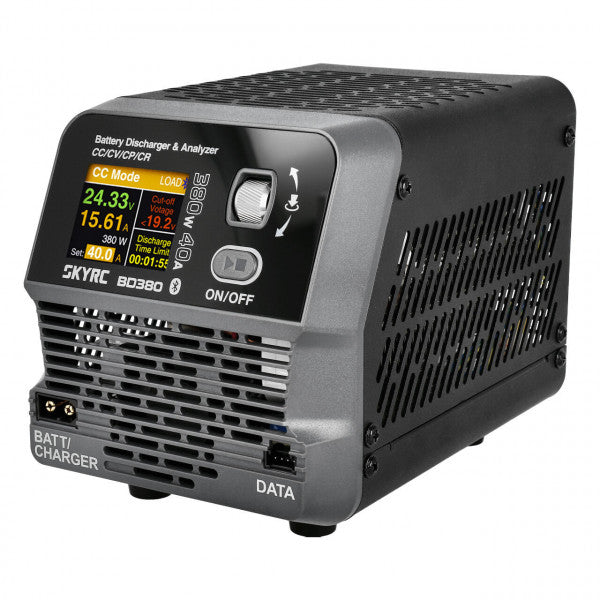

SkyRC BD380 Discharger 40A 380W

The BD380 is a powerful discharger that allows you to easily discharge a battery with up to 40 amps or 380 watts. But that's not all, because the discharger also offers the option of measuring the battery performance during the process and even comparing it with other batteries. And a precise measurement of the capacity helps immensely when choosing the best battery for your next trip.

No matter what kind of battery you want to discharge, factors and distinguishing features such as type, size, chemistry and the number of cells are not important. At up to 30 volts, the BD380 can serve a wide variety of different batteries. The robust housing with XT60 connection for the battery also contains an effective cooling system to ensure an optimal operating temperature. The large color display shows values ​​such as the battery voltage, the discharged capacity and the discharge current.

Characteristics

4 operating modes: CC (constant current), CR (constant resistance), CP (constant power), CV (constant voltage)
Simple and innovative operation
Effective cooling system
Real-time display of battery voltage, discharged capacity and discharge current
Efficient testing of battery capacity to optimally select a battery for the next trip
Thanks to integrated Bluetooth, it can be controlled with the SkyCharger app for Android and iOS systems
Detection of DC-stabilized power supply quality

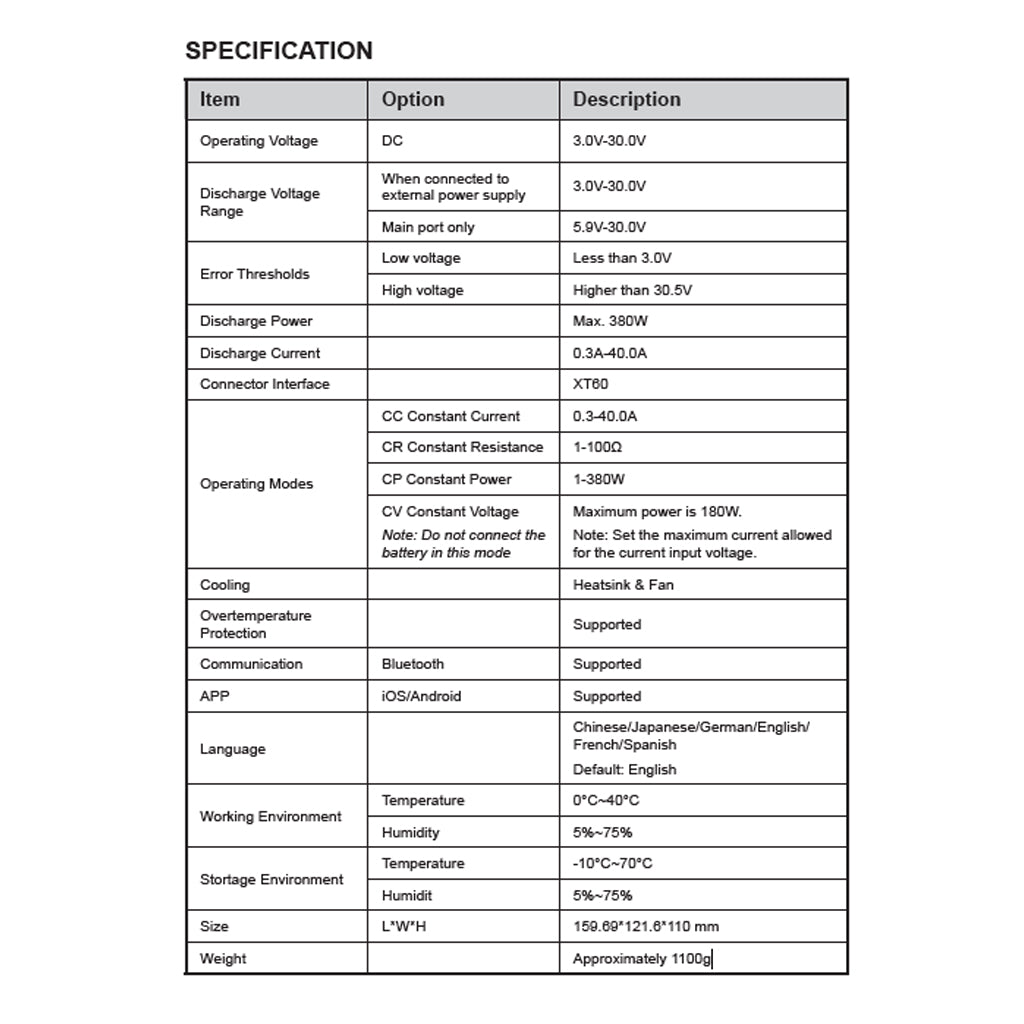

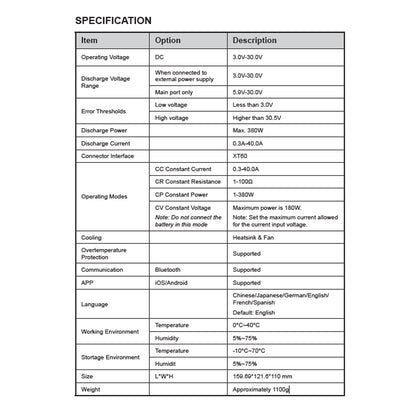

Technical data

Operating voltage: 3.0 - 30.0V DC
Discharge voltage range: 5.9 - 30.0V (main connection)
3.0 - 30.0V (external power supply)
Low voltage alarm: <3.0V
Overvoltage alarm: >max. 30.5V
Discharge power: max. 380W
Discharge current: 0.3 - 40.0A
Operating modes: CC Constant current 0.3 - 40.0A
CR Constant resistance 1 - 100 Ohm
CP Constant Power 1 - 380W
CV Constant Voltage
(Caution: Do not connect a battery in this mode.) max. 180W power
(Note: Set the max. allowable current for the current input voltage.)
Connection: XT60
Bluetooth connection: Yes (SkyCharger app)
Languages: German, English, French, Spanish, Japanese, Chinese
Dimensions: 159.69 x 121.6 x 110mm
Weight: approx. 1100g
